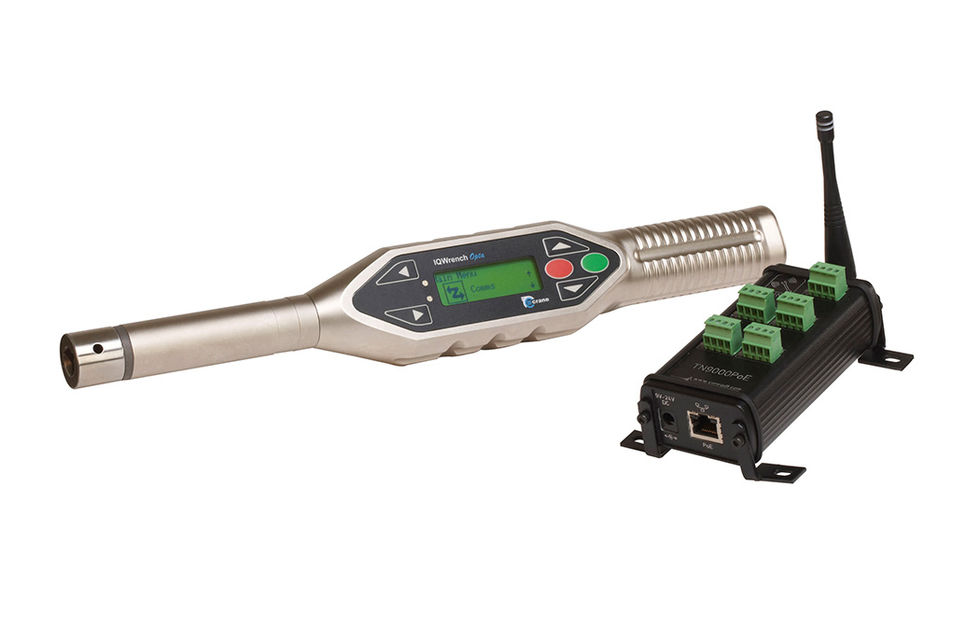

IQWrench2 Torque Wrench

SKU IQW2X-XXXX-CRXXXX

IQWrench2 Torque Wrench

Description

Building on the success of the original IQWrench, the IQWrench2 Opta combines all the features of a high-spec digital torque wrench with a torque data collection system in one ergonomic, versatile and powerful package.

Specifications

Main Features

  • Torque range 0.5 to 1500Nm
  • Class-leading precise torque and angle measurement
  • Automatic fastener movement detection
  • Interchangeable head joints with automatic identification
  • Robust construction for production environments
  • Multiple wireless communication options
  • Optional barcode reader

PRODUCTION IQ WRENCH2 - w/ANGLE

Part Number Max Range Description
IQW2P-0010-CRFAXX 10Nm PRODUCTION w/ANGLE with FIXED HEAD
IQW2P-0010-CRDAXX 10Nm PRODUCTION w/ANGLE with DIN HEAD
IQW2P-0010-CRSAXX 10Nm PRODUCTION w/ANGLE with SR HEAD
IQW2P-0025-CRDAXX 25Nm PRODUCTION w/ANGLE with DIN HEAD
IQW2P-0025-CRSAXX 25Nm PRODUCTION w/ANGLE with SR HEAD
IQW2P-0075-CRDAXX 75Nm PRODUCTION w/ANGLE with DIN HEAD
IQW2P-0075-CRSAXX 75Nm PRODUCTION w/ANGLE with SR HEAD
IQW2P-0180-CRDAXX 180Nm PRODUCTION w/ANGLE with DIN HEAD
IQW2P-0180-CRSAXX 180Nm PRODUCTION w/ANGLE with SR HEAD
IQW2P-0340-CRDAXX 340Nm PRODUCTION w/ANGLE with DIN HEAD
IQW2P-0340-CRSAXX 340Nm PRODUCTION w/ANGLE with SR HEAD
IQW2P-0600-CRDAXX 600Nm PRODUCTION w/ANGLE with DIN HEAD
IQW2P-0750-CRFAXX 750Nm PRODUCTION w/ANGLE with FIXED HEAD
IQW2P-1500-CRFAXX 1500Nm PRODUCTION w/ANGLE with FIXED HEAD

ADVANCED IQWRENCH2 OPTA - w/ANGLE

Part Number Max Range Description
IQW2A-0010-CRFAXX 10Nm ADVANCED ANGLE with FIXED HEAD
IQW2A-0010-CRDAXX 10Nm ADVANCED ANGLE with DIN HEAD
IQW2A-0010-CRSAXX 10Nm ADVANCED ANGLE with SR HEAD
IQW2A-0025-CRDAXX 25Nm ADVANCED ANGLE with DIN HEAD
IQW2A-0025-CRSAXX 25Nm ADVANCED ANGLE with SR HEAD
IQW2A-0075-CRDAXX 75Nm ADVANCED ANGLE with DIN HEAD
IQW2A-0075-CRSAXX 75Nm ADVANCED ANGLE with SR HEAD
IQW2A-0180-CRDAXX 180Nm ADVANCED ANGLE with DIN HEAD
IQW2A-0180-CRSAXX 180Nm ADVANCED ANGLE with SR HEAD
IQW2A-0340-CRDAXX 340Nm ADVANCED ANGLE with DIN HEAD
IQW2A-0340-CRSAXX 340Nm ADVANCED ANGLE with SR HEAD
IQW2A-0600-CRDAXX 600Nm ADVANCED ANGLE with DIN HEAD
IQW2A-0750-CRFAXX 750Nm ADVANCED ANGLE with FIXED HEAD
IQW2A-1500-CRFAXX 1500Nm ADVANCED ANGLE with FIXED HEAD



IQWrench2 Opta Technical Specifications

Physical measurements Bi-directional torque with auto detect
Units of measurement Nm, Ncm, kgfcm, kgfm, ozin, lbin, lbft
Measurement modes Track, Peak, Angle, Performance, Audit, MoveOn
Cycle status indication Bar graph, tri-color LED, and acoustic buzzer
Data storage 200 read memories, up to 50,000 readings in working store
Construction Steel shaft, aluminum housing, 125% overload capacity
Monitor Backlit graphic LCD display
Power Lithium polymer battery with 16 hours typical use
Static accuracy ±0.5% FSD
Operating environment +5°C to +40°C, IP40 rating
Warranty 12 months on parts and labor
