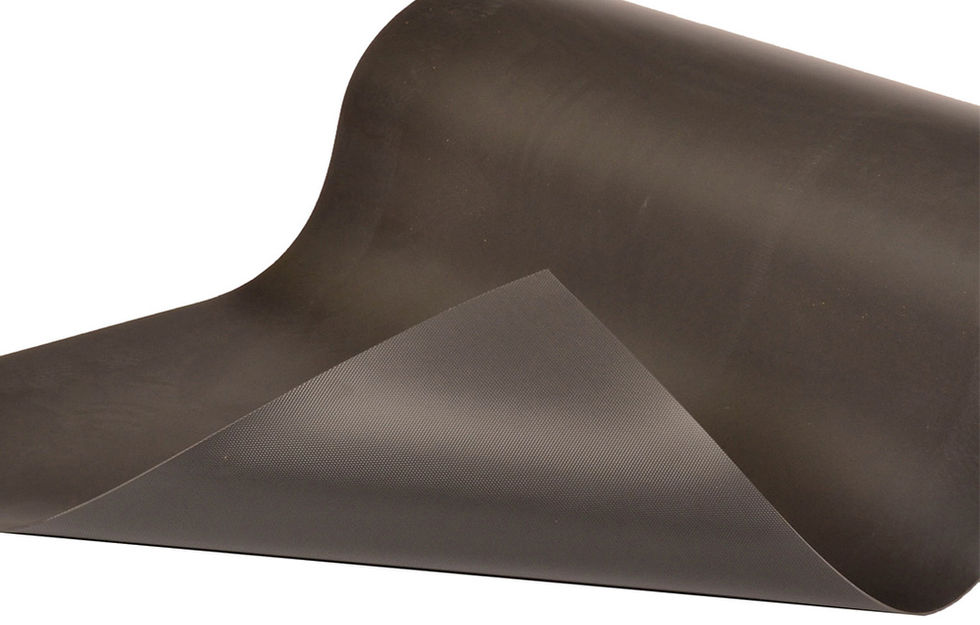

835 Military Switchboard Mat - Type 2

SKU 835

This heavy duty mat meets the MIL-DTL-15562G specification for insulation, blanket board and sheet metal floor covering and is approved for use by the Department of the Navy and all Departments and Agencies of the Department of Defense. This non-conductive floor mat is made from a vinyl compound, designed to provide insulation that prevents the worker from becoming grounded, thus eliminating the possibility of electrical shock. Military switchboard structure - Type II is fire retardant, and its smooth top surface is easy to sweep or clean.

Description

Features and Benefits:

  • Type 2 Electrically Insulating PVC Composite
  • Fire retardant
  • Smooth surface - Easy to sweep or clean
  • Every square foot of this mat is tested in accordance with MIL-DTL-15562G.

Specifications:

  • Class 2 Dielectric strength: 30,000 volts
  • 20,000 volt test test
  • Maximum recommended use voltage: 3,000

Specifications

Available Colors:



  • Black
  • Blue







Total Thickness:

  • 1/8"

Roll Size:

  • 3'x75'

Custom Size:

  • Available in 3' width (up to 75')

Suggested Use:

  • Refer to the Naval Ships Technical Manual, Chapter 634 - Deck Covers, for specific instructions for the installation of MIL-DTL-15562G, Type I, II, or III Board Mats.

Areas of Use:

  • These mats are designed for use around electrical appliances and circuits in the commercial marine industry as well as the military and avionics.



{

Documentation

View Here
